import umap
import matplotlib.pyplot as plt
import numpy as np
import pickle
import os
os.chdir(os.path.abspath(".."))
major_groups = {
"CLP": ["CLP"],
"Erythroid": ["Ery_1", "Ery_2"],
"HSC": ["HSC_1", "HSC_2"],
"Megakaryocytes": ["Mega"],
"Precursors": ["Precursors"],
# immune
"T cells": [
"CD4-positive, alpha-beta memory T cell",
"activated CD8-positive, alpha-beta T cell",
"cytotoxic T cell",
"natural T-regulatory cell",
"regulatory T cell",
],
"NK cells": ["natural killer cell"],
"B/Plasma": ["plasma cell"],
"Dendritic cells": [
"conventional dendritic cell",
"dendritic cell, human",
"plasmacytoid dendritic cell",
"plasmacytoid dendritic cell, human",
"DCs",
],
"Mono/Macro": [
"Mono_1",
"Mono_2",
"classical monocyte",
"macrophage",
],
"Granulocytes": ["granulocyte"],
"Mast cells": ["mast cell"],
# stromal / vascular
"Endothelial": ["capillary endothelial cell"],
"Fibroblasts": ["fibroblast of breast", "fibroblast of lung", "muscle fibroblast"],
"Pericytes": ["pericyte"],
"Smooth muscle": ["smooth muscle cell"],
# epithelial / gland
"Epithelial/Gland": [
"epithelial cell of lung",
"basal cell of epithelium of lobular bronchiole",
"mucous cell of stomach",
"parietal cell",
"salivary gland glandular cell",
],
# malignant
"Malignant": ["malignant cell"],
}
fine2major = {fine: major for major, fines in major_groups.items() for fine in fines}
TAB20 = list(plt.cm.tab20.colors)
Set2 = list(plt.cm.Set2.colors)
Set3 = list(plt.cm.Set3.colors)
color_map = {
"Malignant": TAB20[0],
"Epithelial/Gland": TAB20[1],
"B/Plasma": TAB20[18],
"Dendritic cells": TAB20[19],
"T cells": TAB20[2],
"NK cells": TAB20[3],
"Granulocytes": TAB20[4],
"Mono/Macro": TAB20[5],
"Mast cells": TAB20[6],
"Endothelial": TAB20[7],
"Fibroblasts": TAB20[8],
"Pericytes": TAB20[9],
"Smooth muscle": TAB20[10],
"Other": (0.6, 0.6, 0.6),
# bonemarrow 专用大类
"Erythroid": Set2[1],
"HSC": Set2[3],
"Megakaryocytes": Set2[5],
"CLP": Set2[2],
"Precursors": Set2[0],
}
fallback_pool = [c for c in TAB20 if c not in set(color_map.values())]
fallback_idx = 0
def get_color_for_label(lbl: str):
global fallback_idx
if lbl in color_map:
return color_map[lbl]
if fallback_idx >= len(fallback_pool):
fallback_idx = 0
color_map[lbl] = fallback_pool[fallback_idx]
fallback_idx += 1
return color_map[lbl]
# ==============================================
DATA_list = ['Lung', 'DLBCL', 'BC4_FLEX', 'bonemarrow'] #
for data_name in DATA_list:
with open(f'Result/Cell_level_task/{data_name}_embedding.pkl', 'rb') as f:
cell = pickle.load(f)
emb = cell['embedding']
label_fine = np.asarray(cell['label'])
label_major = np.array([fine2major.get(str(x), "Other") for x in label_fine], dtype=object)

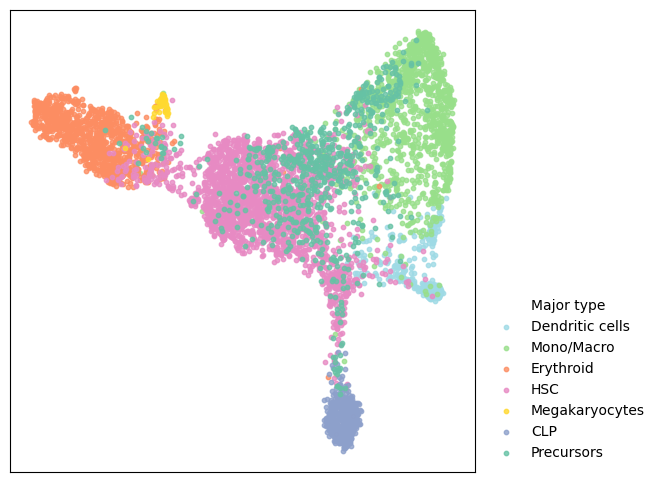

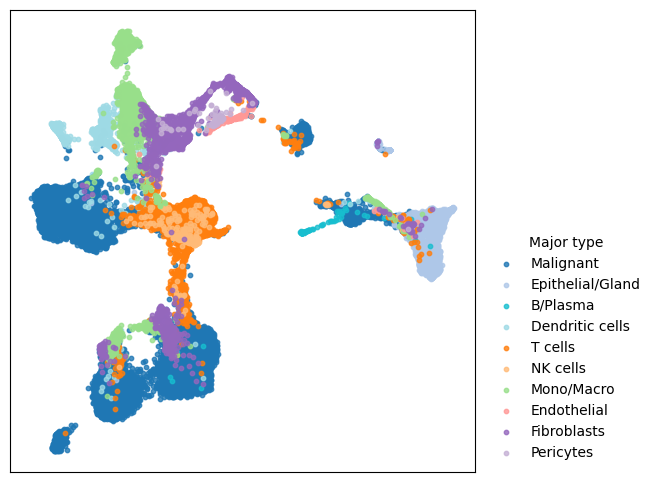

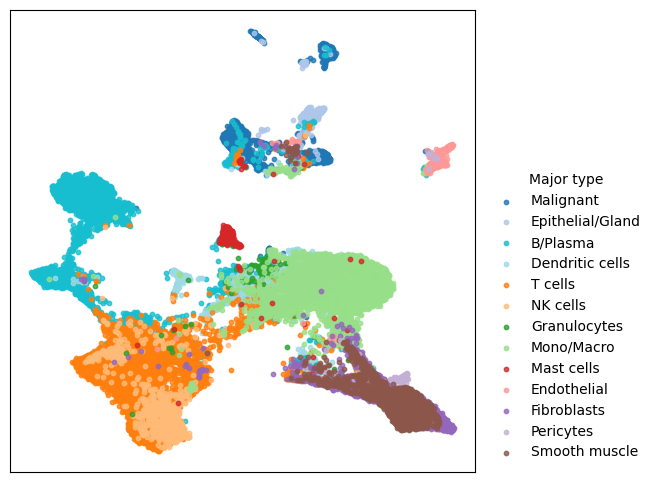

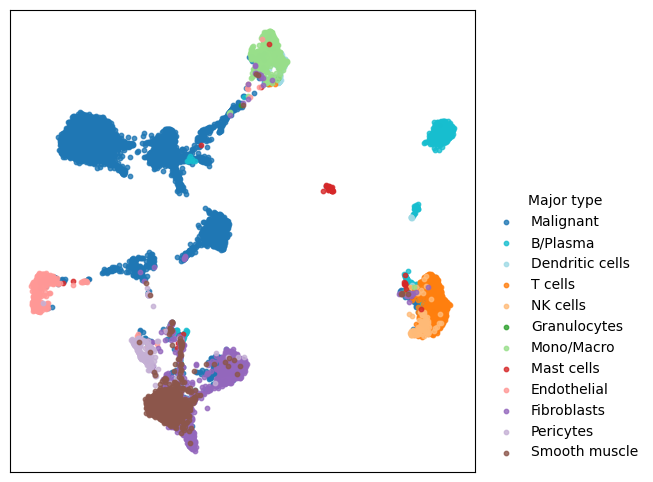

# UMAP
umap_model = umap.UMAP(random_state=42)
emb_2d = umap_model.fit_transform(emb)
present = set(np.unique(label_major).tolist())
unique_major = [k for k in color_map.keys() if k in present]
unique_major += sorted([k for k in present if k not in color_map])
fig, ax = plt.subplots(figsize=(6, 6))
for lab in unique_major:
mask = (label_major == lab)
ax.scatter(
emb_2d[mask, 0], emb_2d[mask, 1],
label=lab,
color=get_color_for_label(lab),
s=10, alpha=0.8
)
ax.set_xticks([])
ax.set_yticks([])
ax.legend(bbox_to_anchor=(1.01, 0), loc='lower left', fontsize=10,
frameon=False, title="Major type")
plt.show()
